Features and performance:

• 5:1 reduction ratio.
• In stock and ready to ship out!
• Compatible with virtually ALL NEMA 34 frame motors with either 14mm or 12.7mm (1/2") shafts. These gear boxes are supplied with a precision reducer collet that can be inserted into the native 14mm bore to make the bore 1/2".
• Superior fit and finish. These are beautiful and look like they should cost much more than they do.
• Precise. Backlash ≤ 8 arcmin.
• Rated output torque 60 Nm.
• Maximum output torque 120 Nm.
• Rated input speed 5,000 rpm.
• Maximum input speed 10.000 rpm.
• Noise < 58 Db.
• Input torque ≤ 12.63 Nm.

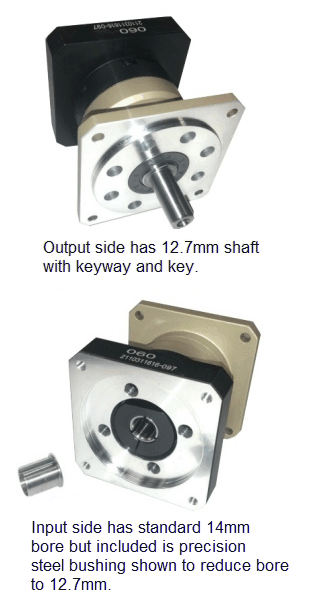

• Outboard shaft measures 12.7mm (1/2") diameter with keyway and key. This shaft works with our range of helical and straight-cut pinion gears that have 12.7mm (1/2") bore.

• Model 60D-05-14.0-12.7 (5:1 reduction ratio)
